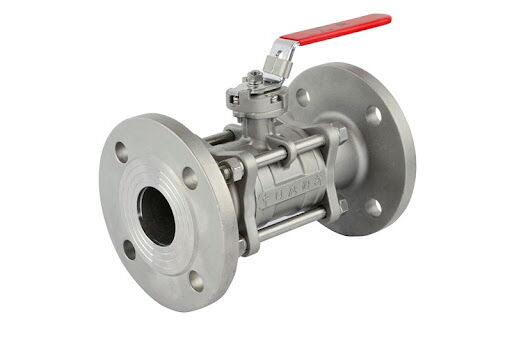

How Does a Manual Ball Valve Work?

Manual ball valves are among the most widely used and trusted valves in industrial and residential applications. Known for their simple design and powerful performance, they provide an efficient means of controlling fluid flow with minimal effort. But how exactly does a manual ball valve work? What makes it so popular in the valve market? Let’s explore the mechanics, types, and advantages of manual ball valves, along with some considerations to keep in mind for their operation.

What Is a Ball Valve?

A ball valve is a shutoff valve that uses a rotating ball with a hole (or port) through the middle to control the flow of liquids or gases. The valve operates by turning the ball 90 degrees, allowing the hole to align with the pipe to open the valve, or turning it the opposite way to block the flow. This simple quarter-turn motion makes the ball valve highly efficient for quick shutoff or opening of fluid flow.

Ball valves are typically used for on/off control rather than flow regulation. While they can be partially opened to adjust flow, they perform best as shutoff valves. Their ease of use, reliable sealing, and durability make them a popular choice across industries ranging from water and oil pipelines to chemical and manufacturing facilities.

Materials Used in Ball Valves

Ball valves come in a variety of materials to suit different applications and environments. Common materials include:

Stainless Steel

Highly resistant to corrosion and extreme temperatures, stainless steel ball valves are widely used in industrial applications. They are especially valuable in harsh environments such as chemical plants or oil refineries.
Brass: A popular choice for residential plumbing and smaller industrial applications, brass ball valves are known for their affordability and corrosion resistance.

Carbon Steel

Often used in oil and gas industries, carbon steel ball valves offer strength and durability in high-pressure environments.

Cast Iron

Valves made from cast iron are typically used in water and steam applications, providing excellent pressure resistance.

PVC

Lightweight and cost-effective, PVC ball valves are often used in low-pressure applications such as irrigation or water systems.

Each material provides unique benefits, making it essential to choose the right one based on the operating environment and the fluids being controlled.

Types of Ball Valves

There are several variations of ball valves, each designed to meet specific needs. Some of the most common types include:

1. Standard Ball Valves

Standard ball valves feature a simple design with two to four ports and are widely used for general-purpose applications. These valves are cost-effective but may reduce flow efficiency because the ball inside the valve takes up some space. To accommodate this, standard ball valves are often sized slightly smaller than the pipe diameter.

2. Full Port Ball Valves

Full port ball valves have a larger ball and bore, matching the size of the pipe. This design eliminates flow restriction, allowing fluids to pass through with minimal pressure drop. While they tend to be bulkier and more expensive than standard ball valves, full port valves are essential for systems that require maximum flow efficiency.

3. Trunnion Ball Valves

Trunnion ball valves have additional mechanical anchors at the top and bottom of the ball, providing extra stability in high-pressure applications. This design prevents excess movement of the ball under pressure, making trunnion ball valves ideal for use in larger systems or environments where pressure levels can reach up to 6000 psi.

4. V Port Ball Valves

V port ball valves feature either a v-shaped ball or a v-shaped seat, which enables better control over flow rate. These valves offer more precise flow regulation, allowing for smoother transitions and less flow turbulence. However, because of the high velocity of fluids passing through, V port valves require a more durable construction.

5. Vented Ball Valves

Vented ball valves resemble standard two-way ball valves but include a small hole drilled into the ball to release trapped pressure when the valve is closed. These valves are particularly useful in compressed air or gas systems, where venting excess pressure is necessary for safety and proper system function.

How a Manual Ball Valve Works

The manual ball valve operates through a quarter-turn mechanism. The handle or lever on the valve is connected to a stem, which rotates the ball inside the valve body. When the handle is parallel to the pipe, the ball’s hole is aligned with the flow, allowing fluid to pass through. When the handle is turned 90 degrees, the solid part of the ball blocks the flow, shutting off the valve.

This simple, intuitive operation is what makes manual ball valves so popular. They provide fast and reliable shutoff, requiring only a quarter turn to open or close completely. Unlike other valves that may require multiple turns or precise adjustments, ball valves offer a straightforward and efficient solution for controlling fluid flow.

Understanding Water Hammer Risks

One of the key considerations when using manual ball valves is the potential for water hammer. Water hammer occurs when there is a sudden change in fluid velocity, such as when a valve is closed too quickly. This abrupt stop creates a pressure wave that travels through the piping system, causing vibrations, loud noises, and potentially even pipe damage.

Ball valves, due to their rapid shutoff capability, are particularly susceptible to water hammer effects. If a valve is closed too quickly, the resulting pressure spike can be up to 10 times greater than the system's normal operating pressure. This can lead to serious damage, including:

Pipe Ruptures

The sudden pressure surge can cause pipes to burst, leading to costly repairs and downtime.

Leaks

Pressure surges can weaken valve seals, resulting in leaks that compromise the system’s integrity.

Valve Damage

The intense vibrations can cause wear and tear on the valve components, reducing their lifespan.

To avoid water hammer, it’s important to close manual ball valves with caution. Gradually turning the valve rather than slamming it shut can prevent pressure spikes and protect both the valve and the entire system.

Advantages of Manual Ball Valves

Manual ball valves offer several key advantages, making them a preferred choice in many applications:

Simplicity

With a straightforward design and operation, ball valves are easy to use and maintain.

Fast Operation

The quarter-turn mechanism allows for quick shutoff, making ball valves ideal for emergency situations.

Reliability

Ball valves provide a tight seal, even after long periods of disuse, reducing the risk of leaks.

Durability

Constructed from robust materials, ball valves are built to withstand harsh conditions, high pressure, and corrosive environments.

Versatility

Available in a wide range of sizes, materials, and configurations, ball valves can be used in numerous industries, from plumbing and HVAC systems to chemical and oil industries.

Conclusion

The manual ball valve, with its simple design and powerful performance, is a staple in fluid control systems around the world. Whether you need reliable shutoff, ease of operation, or durability under pressure, manual ball valves offer a versatile and efficient solution. By understanding how these valves work and the types available, you can choose the best option for your specific application while ensuring safe and effective operation.
